Modifying a GameVue Playstation Panel to Accept direct RGB Input

  UPDATE - click here

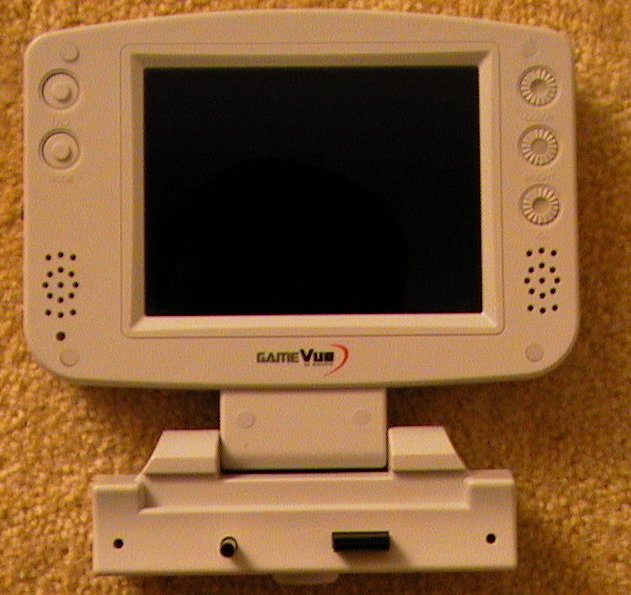

Unmodified Panel

"GameVue by Rosen"

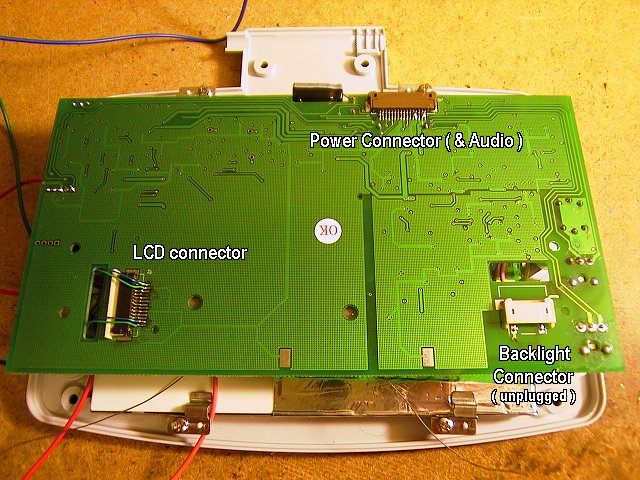

Back Removed

These are the important Connectors

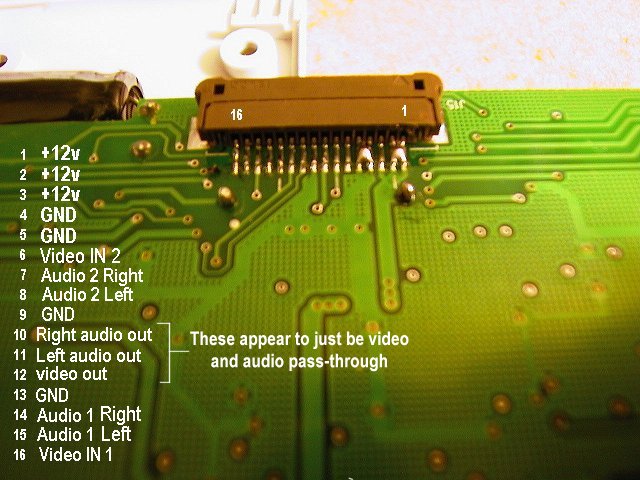

Pinout for the power connector

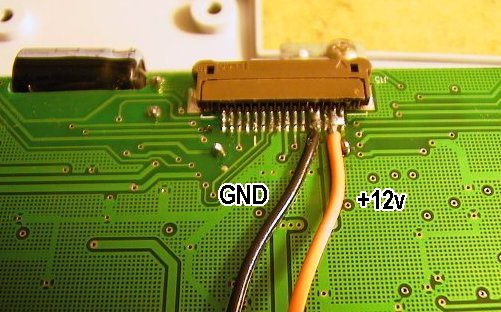

Wired Power Connector ( +12v and GND to JAMMA connector )

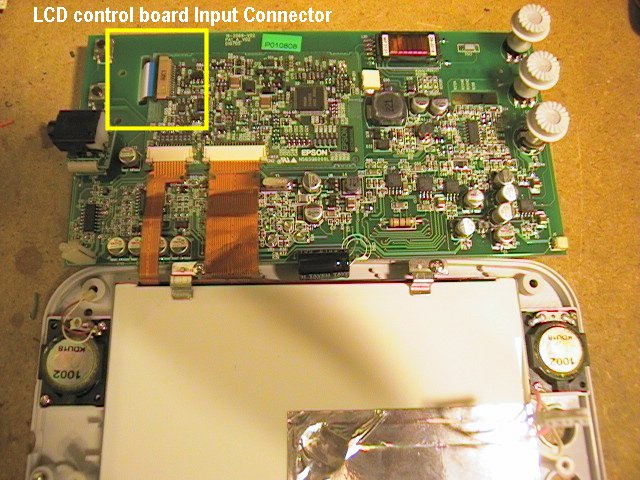

Display and Control board opened out
LCD panel input connector

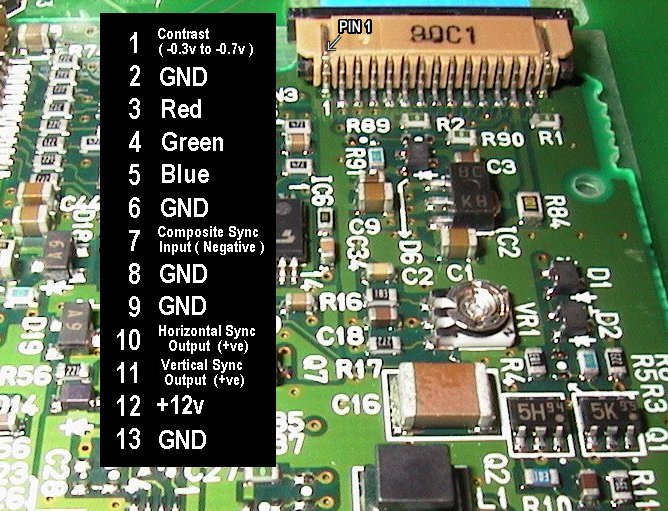

Input Connector Close up + pinout





Top PCB

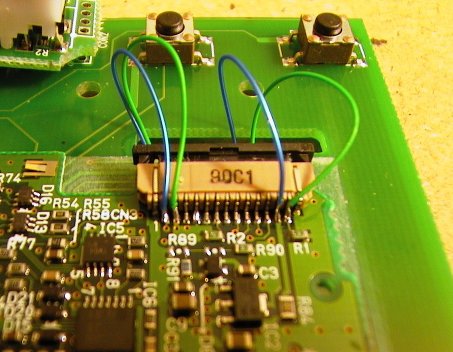

Bottom on PCB & LCD control board

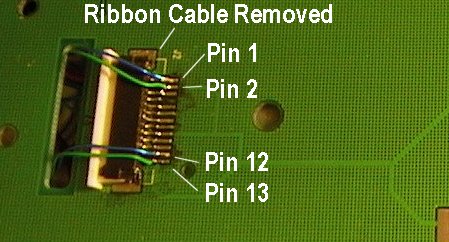

There was a ribbon connector between the top size of the main PCB and the control PCB for the LCD.
This was removed and pin 1,2, 12 & 13 wired to the directly to the connector on the control PCB

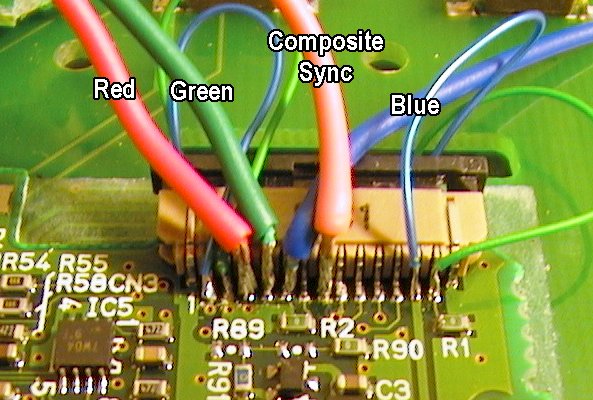

LCD controller wired up



Hooked up to a JAMMA board



UPDATE






Some gameboards tested have suffered from a 'washed out' image caused by the RGB levels from the board being too high.

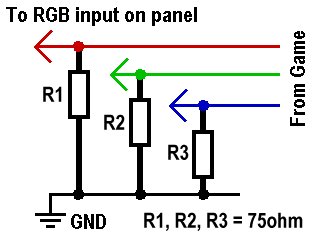

A simple fix is show in the diagram,  tie the RGB inputs to ground via 75ohm resistors, this will result in having to adjust the brightness control for some games. Results will vary but this seemed to provide a good compromise across different boardsets.
