Original Cabinet/Cocktail JAMMA wiring

For version 1.1 board hardware


Complete
Overview
RCR-1000
Connectors

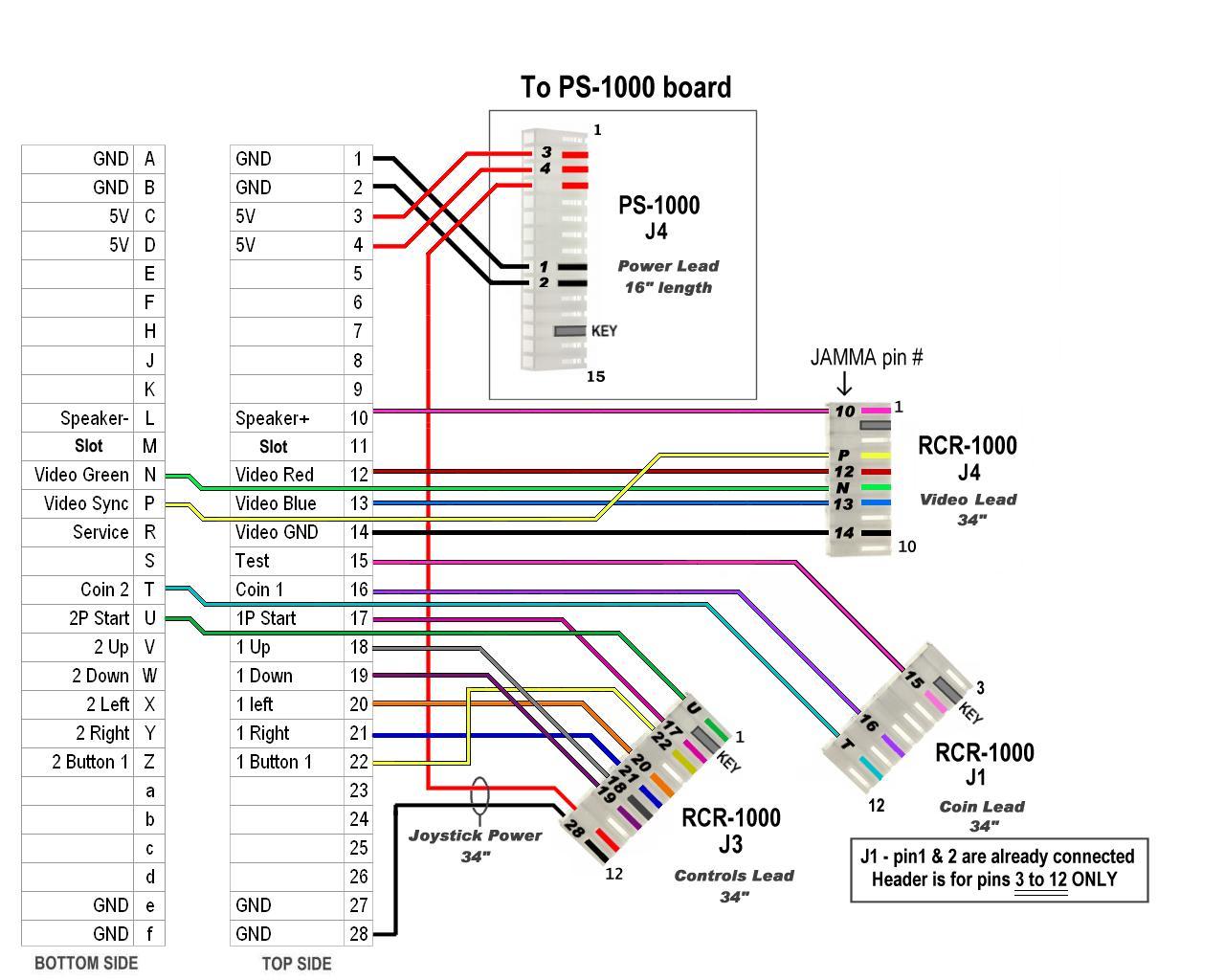

Wiring Overview

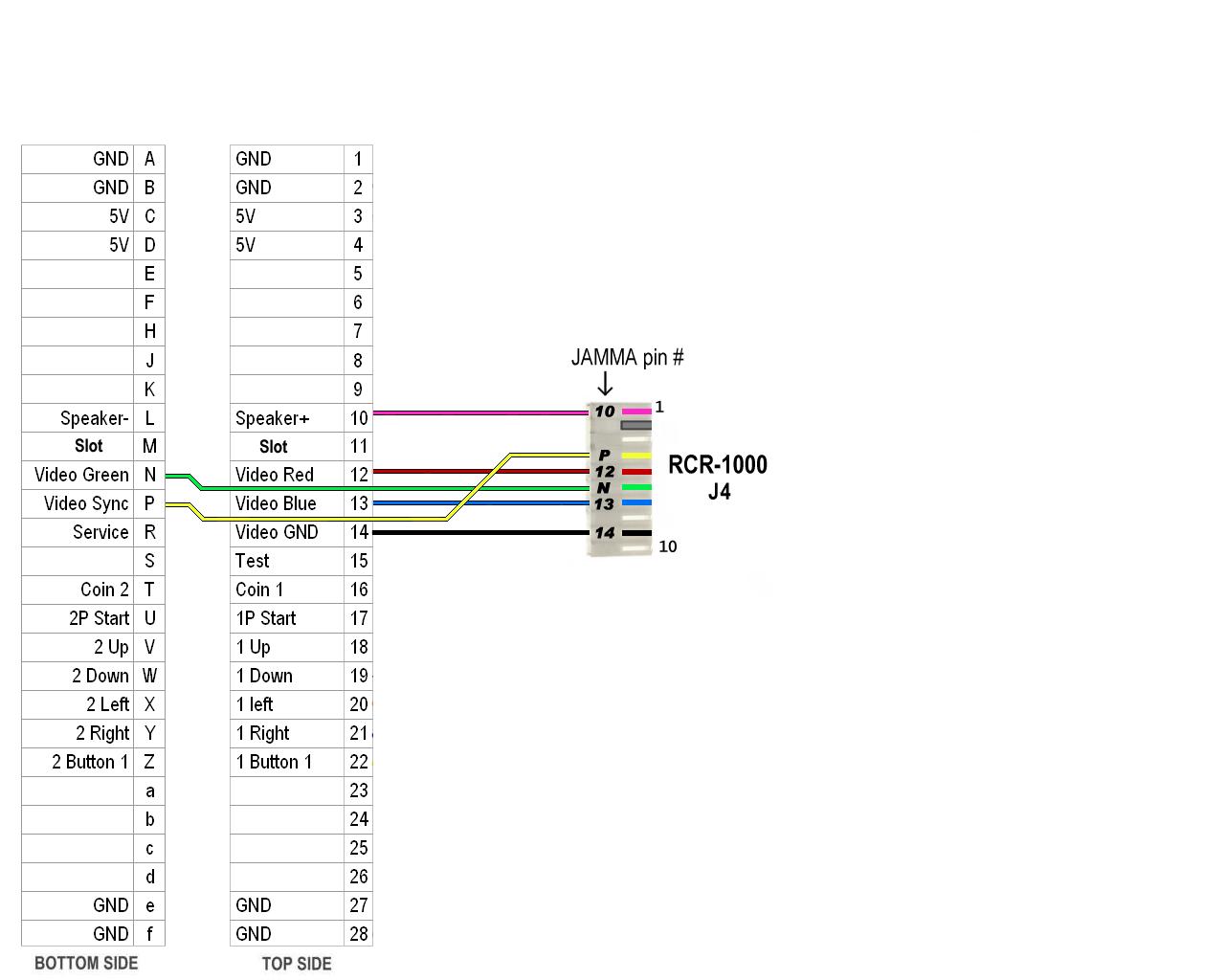

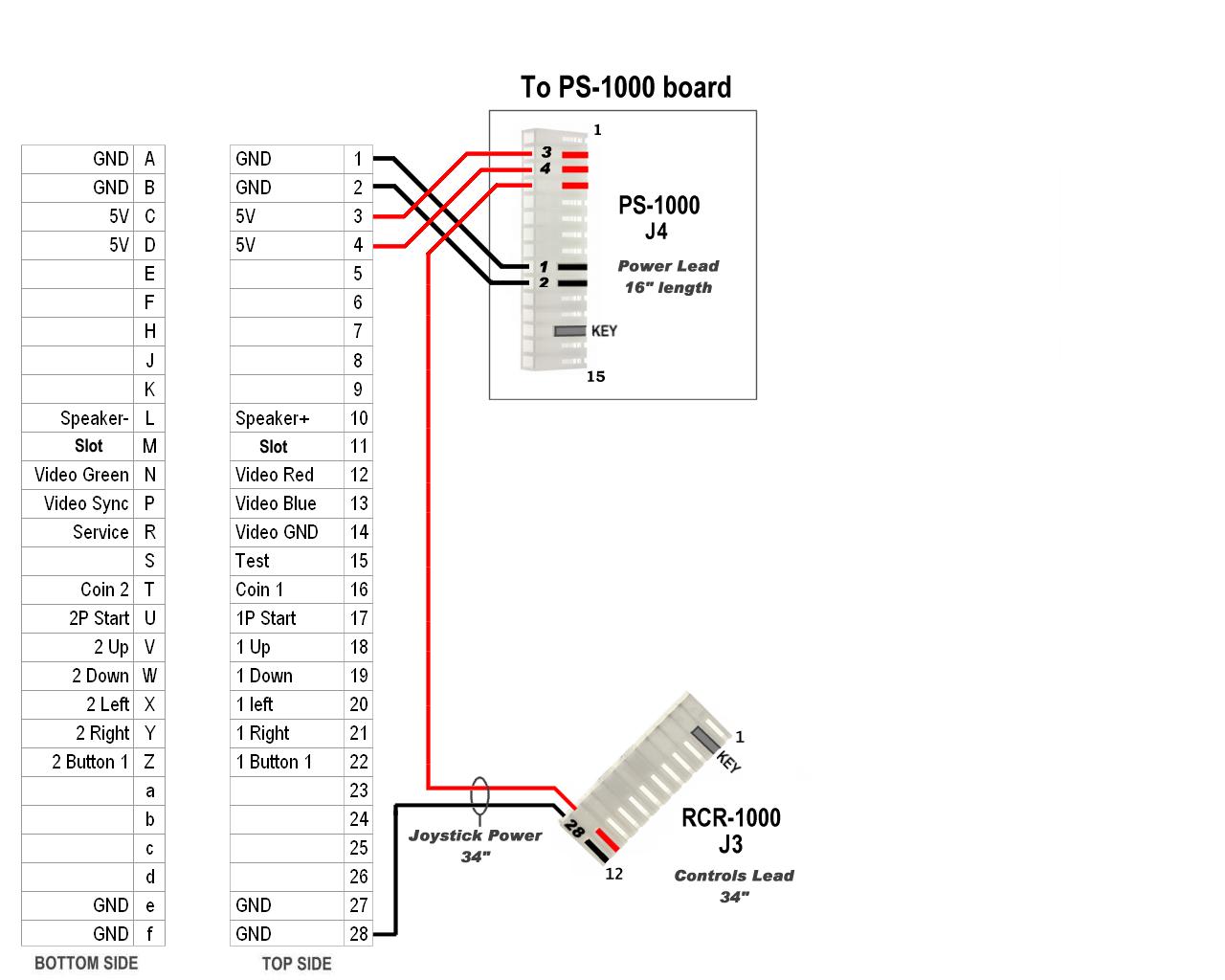

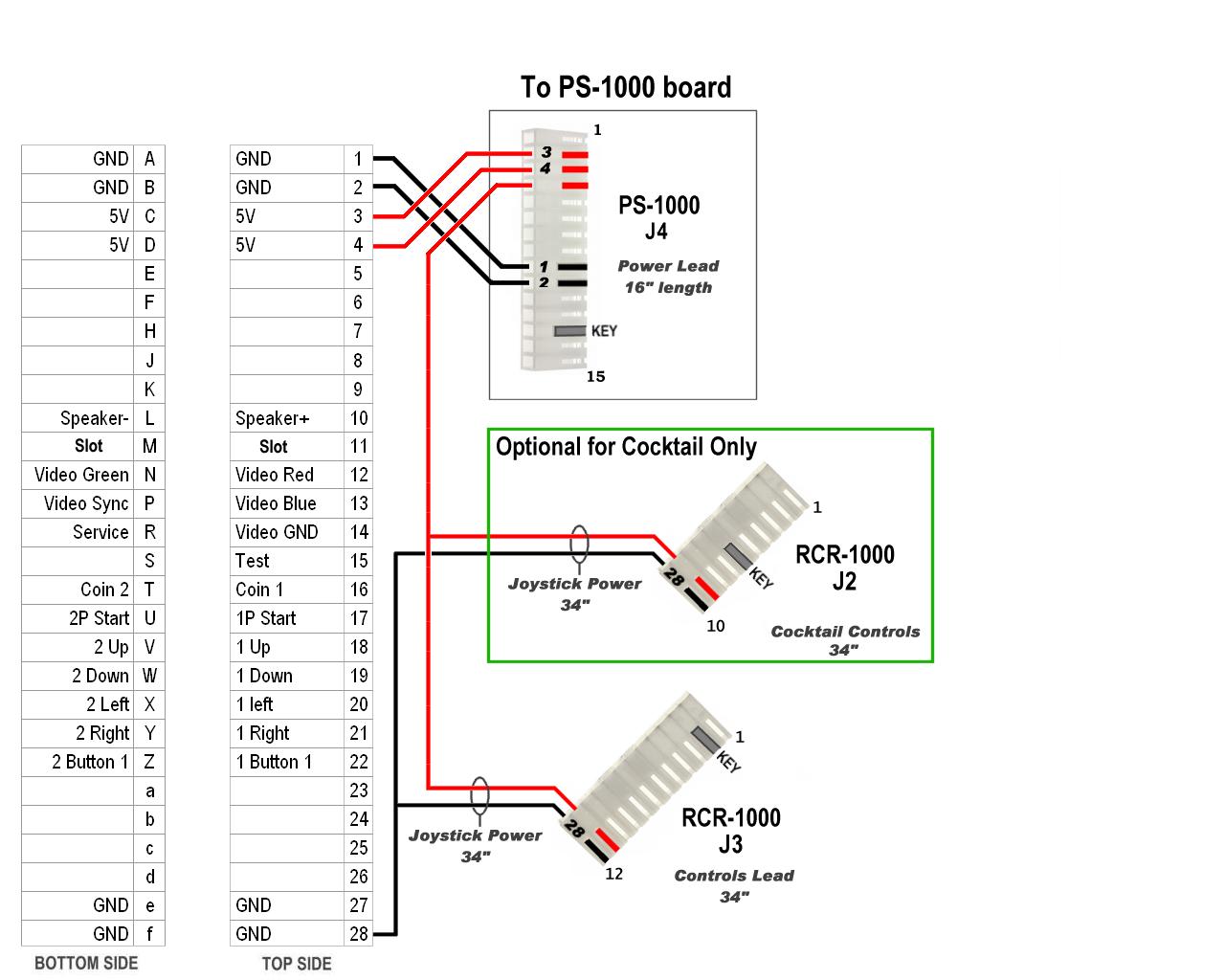

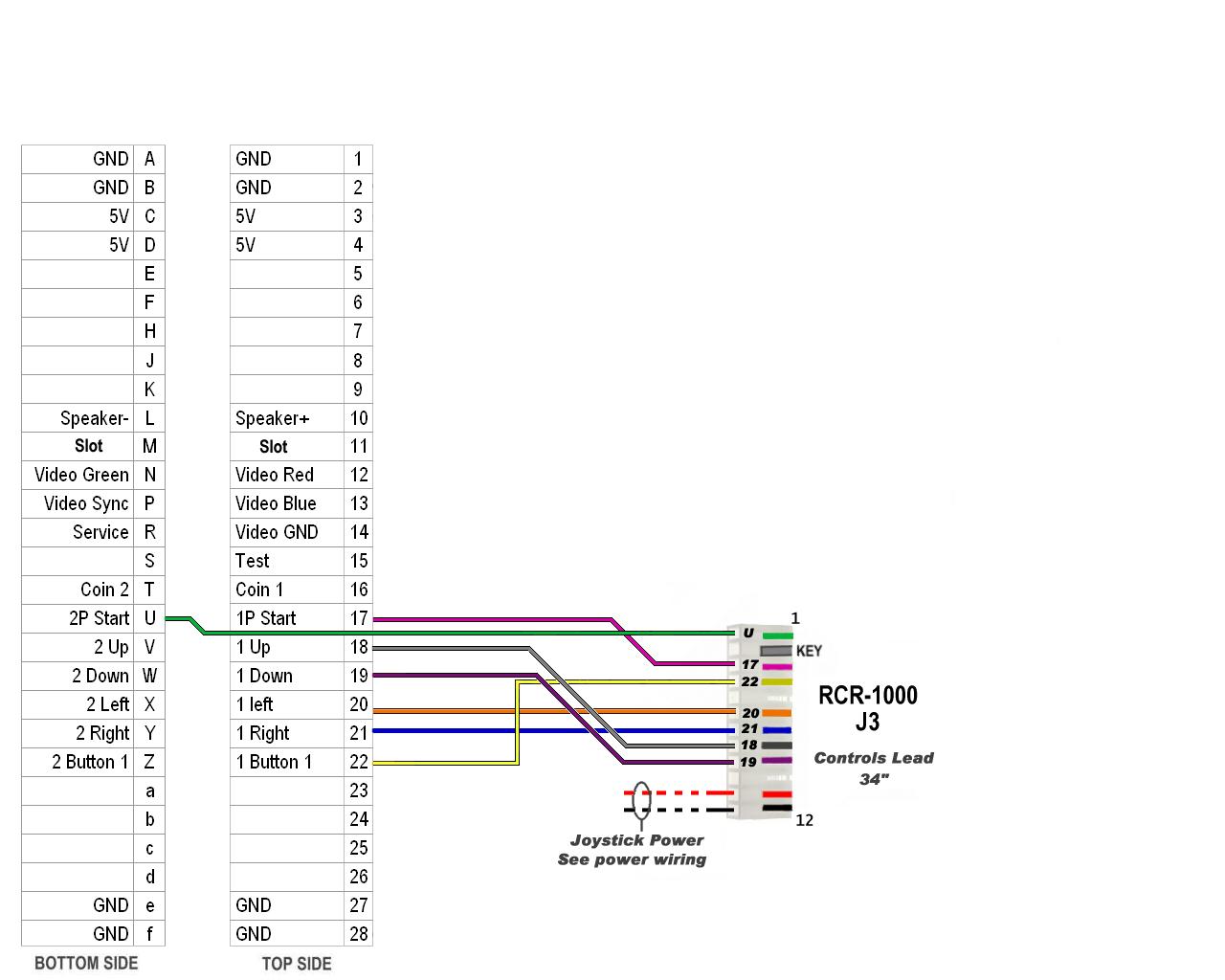

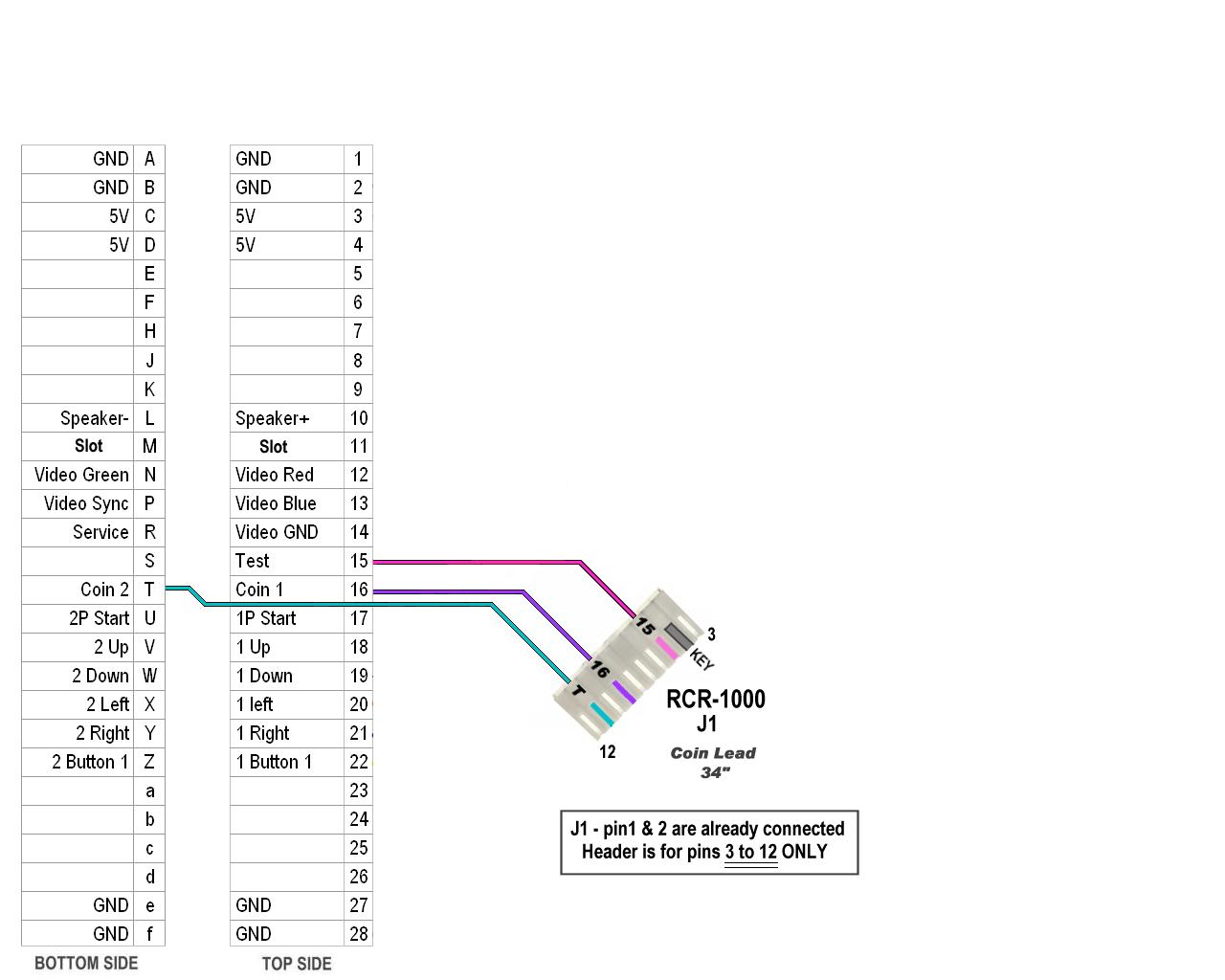

Power Power (cocktail) Video & Sound Coin & Test Controls Controls (cocktail)

Click for fullsize image




Connector types are all Molex KK 0.156 ( 3.96mm ) part numbers are for Molex connectors.

Connectors for all cabinet styles:

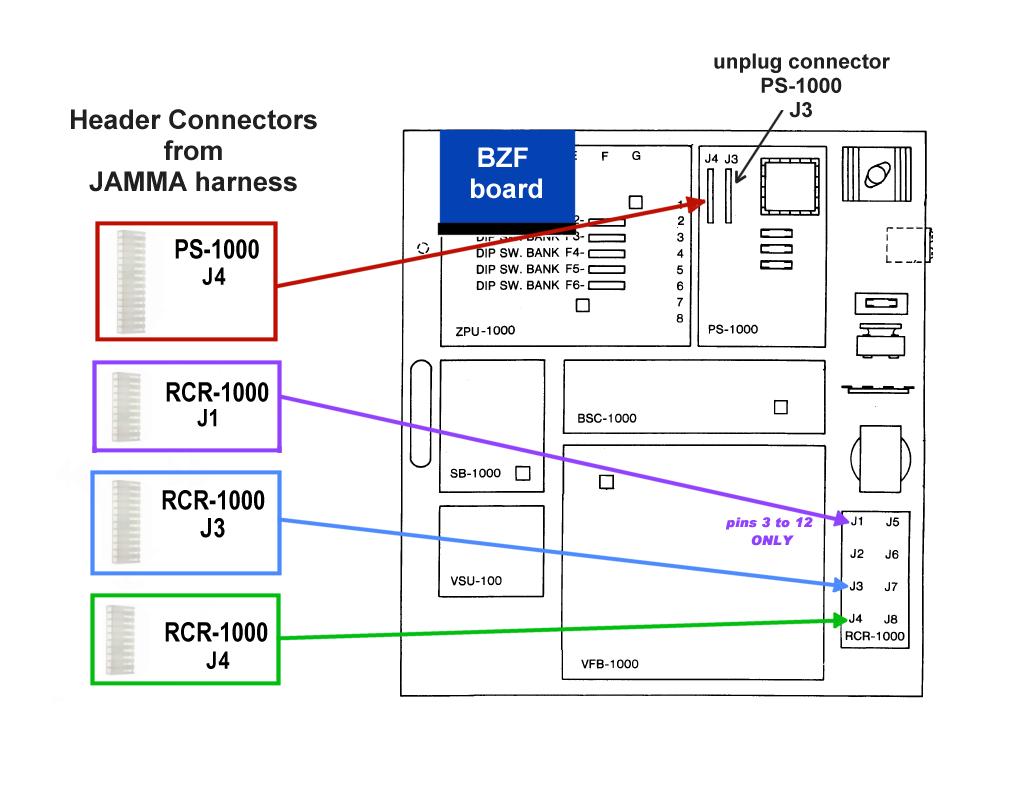

PS-1000, J4 15 pin = 09-50-7151 ( or 09-50-3151)

RCR-1000, J1, 10 pin = 09-50-7101 ( or 09-50-3101)
RCR-1000, J3, 12 pin = 09-50-7121 ( or 09-50-3121)
RCR-1000, J4, 10 pin = 09-50-7101 ( or 09-50-3101)

Keying pin:
15-04-0219

Crimp Pins:
08-50-0189 (20 to 18 AWG wire) trifurcon pins recommended for power & ground connections
08-03-0304 (24 to18 AWG) for all other connectors

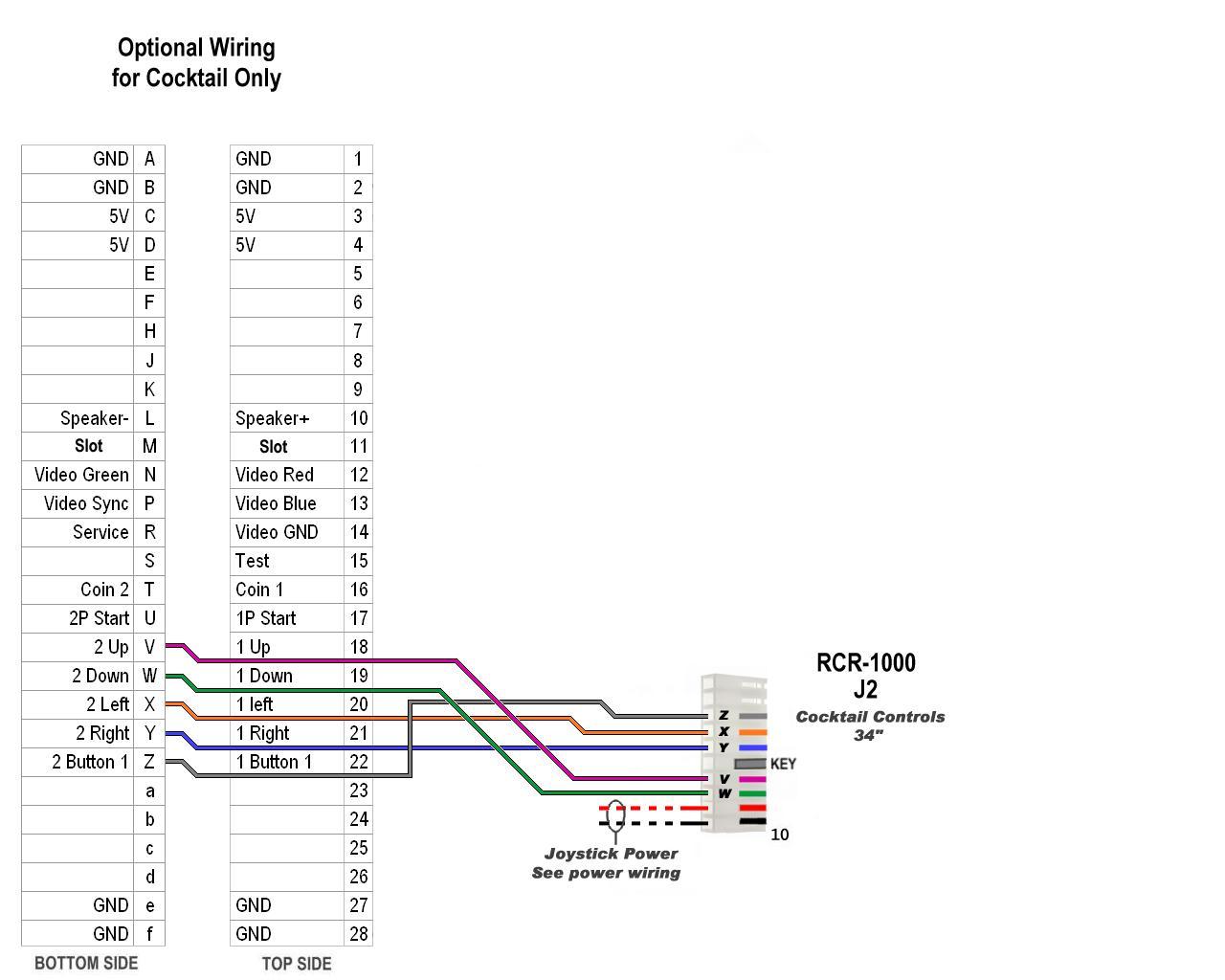

Additional connectors for Cocktail
RCR-1000, J2, 12 pin = 09-50-7101 ( or 09-50-3101)
